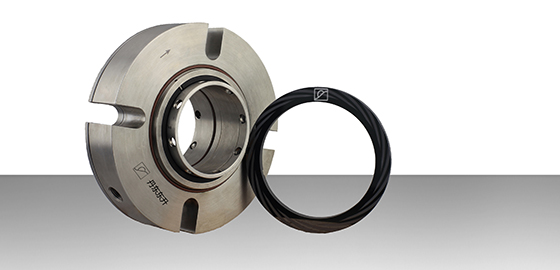

D902 Double Face Gas Lubricated Seal
点击查看大图片
D902 Double Face Gas Lubricated Seal

Product Description:
Gas obstruction to change liquid obstruction;
Double-face design accord with API682-2004 arrangement 3NC-BB;
Seal face is with bidirectional logarithmic spiral groove or other grooves;
Adopts the finite element analysis method to guarantee gas film stiffness;
Balance design eliminates deforming possibility of seal face;
High quality spring supply well-distributed loading for seal face;
Compact structure, small space;

Performance Capabilities:
Pressure: 0<P<2MPa
Temperature:-20～180°C
Speed:1000～5000r/min

Applications:
Toxic and harmful mediums without solids
