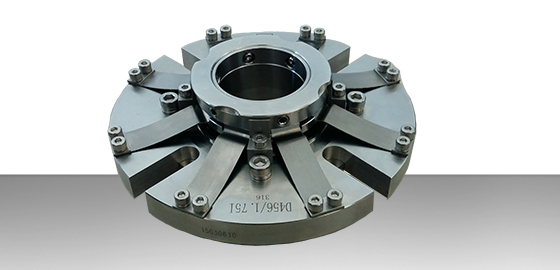

D456 Cartridge Slurry Seal
Characteristic:
Cartridge design and easy to install and disassembly;
Balance design and integrated hard face to handle high pressure;
Spring out-mounted, multi-points arrangement, non-block design;
Rubber diaphragm is to be secondary seal with o rings;
Performance:
Shaft Size: 45~200mm (1.75”～8”)
Temperature: -30℃～200℃
Pressure: 0~2.5MPa
Speed: 25m/s
Application:
Seal designed for slurry liquid with solids and fiber;
For pumping slurry liquid of power plant, oil-field, paper-made plant; |
