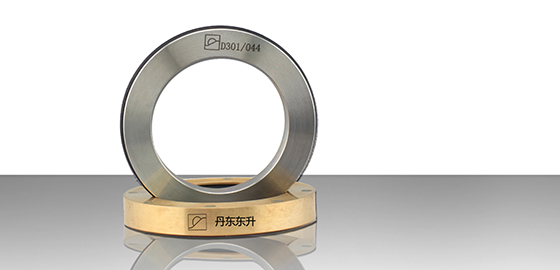

D301Bearing Isolator
点击查看大图片
Bearing Isolator
Product Description:
Adopts permanent magnetism material as magnetic compensation to supply continuous close-force for faces;
Integrated chrome steel structure to have low face deformation;
Compact structure easy to install, harmless to the shaft and low power loss;
Can replace skeleton oil seal and labyrinth packing totally on structure and working performance

Performance Capabilities:
Shaft Size: 20～150mm
Temperature: 0～60℃
Pressure: 0～0.2MPa(relative)
Limiting Velocity: 15m/s
Special sizes base on request

Applications:
Suitable for sealing bearing box, gear box, reducer and air-blower.
