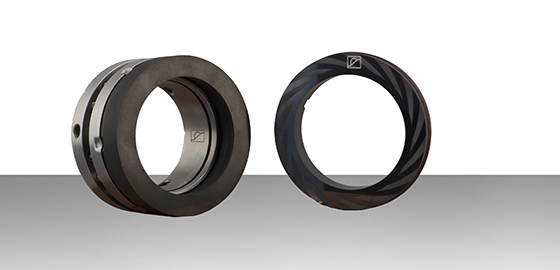

D901 Gas Lubricated Seal
Product Description:
Tandem cartridge seal accordance with API682-2204, arrangement 2CW-CS
Seal face is with logarithmic spiral groove or other grooves;
Adopts finite element analysis method to guarantee gas film stiffness;
Balance design eliminates deforming possibility of seal face;
High quality spring supply well-distributed loading for seal face;
Performance Capabilities:
Pressure: 0.2～0.3MPa (PLAN72 for gas seal)
0～4.5MPa (medium seal)
Temperature: -20～180°C
Speed:1000～5000r/min
Applications:
Non-toxic and harmless medium without solids
|
